CAP ALUM 100UF 20% 420V SNAP

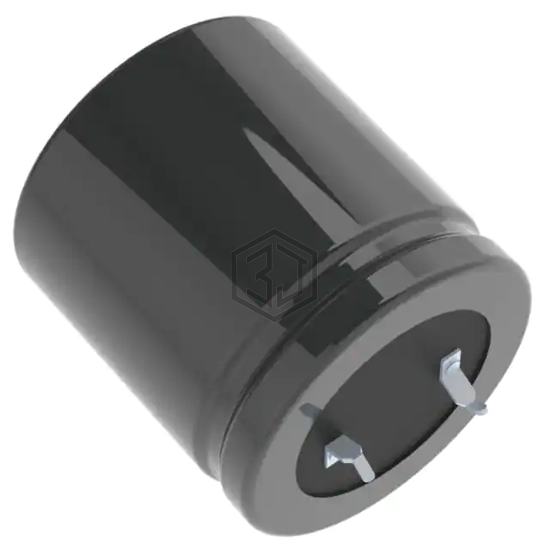

LASW6101MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 8,831
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 690 mA @ 120 Hz |
| Ripple Current @ High Frequency | 793.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ401VSN101MP25S | United Chemi-Con | CAP ALUM 100UF 20% 400V SNAP | 93% | View |
| 450HXW100MEFR14.5X35 | Rubycon | CAP ALUM 100UF 20% 450V RADIAL | 88% | View |
| B43544E7107M002 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 550V SNAP | 82% | View |
| EKXJ451ELL101MMP1S | United Chemi-Con | CAP ALUM 100UF 20% 450V RADIAL | 73% | View |
| UBW2A101MHD1TO | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 66% | View |
| EKXG161ELL101ML20S | United Chemi-Con | CAP ALUM 100UF 20% 160V RADIAL | 63% | View |
Submit your RFQ for LASW6101MELA25 and get a quote within 24 hours.
