CAP ALUM 390UF 20% 450V SNAP

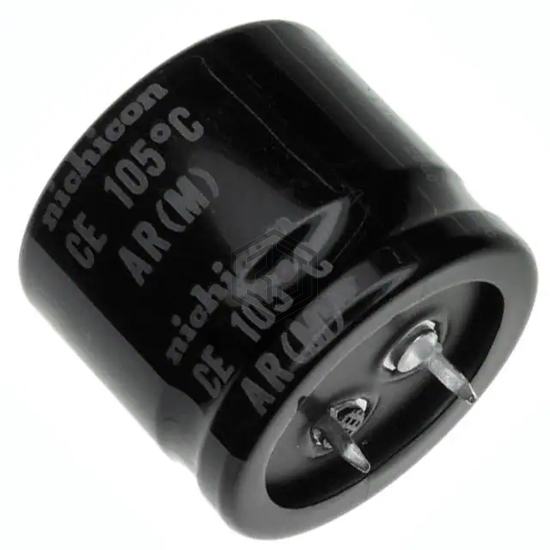

LAR2W391MELB50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,396
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.61 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8515 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELHS451VSN391MR40S | United Chemi-Con | CAP ALUM 390UF 20% 450V SNAP | 94% | View |
| PL2G391MND2545Y | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 91% | View |
| EKMH401VSN391MR50S | United Chemi-Con | CAP ALUM 390UF 20% 400V SNAP | 91% | View |
| B43252B9397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 89% | View |
| B43548B9397M060 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 76% | View |
| LGN2P391MELZ30 | Nichicon | CAP ALUM 390UF 20% 220V SNAP | 73% | View |
Submit your RFQ for LAR2W391MELB50 and get a quote within 24 hours.
