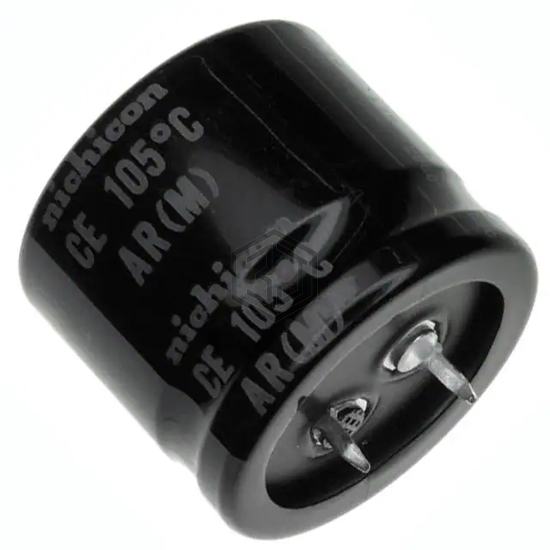

CAP ALUM 390UF 20% 400V SNAP
LAR2G391MELB40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1,971
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2165 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL209426391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 400V SNAP | 100% | View |
| B43640A9397M000 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 100% | View |
| ETXH401VSN391MA40S | United Chemi-Con | CAP ALUM 390UF 20% 400V SNAP | 96% | View |
| 381LQ391M450K052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 450V SNAP | 96% | View |
| ELXS451VSN391MR45S | United Chemi-Con | CAP ALUM 390UF 20% 450V SNAP | 92% | View |
| SLP391M315E5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 315V SNAP | 91% | View |
