CAP ALUM 470UF 20% 200V SNAP

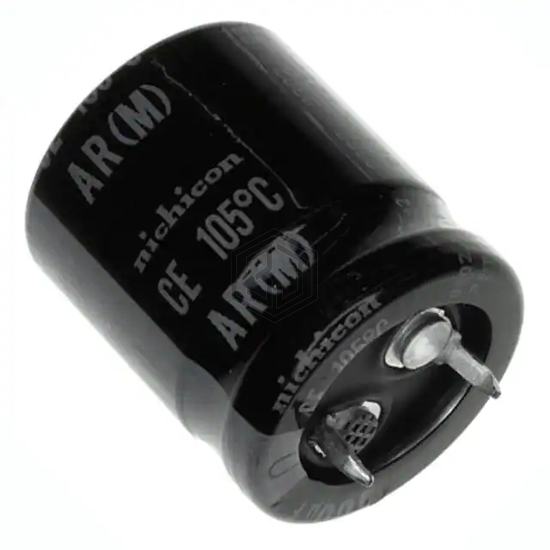

LAR2D471MELZ30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 9,755
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.48 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.22 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 160TXW470MEFR18X35 | Rubycon | CAP ALUM 470UF 20% 160V RADIAL | 92% | View |
| LGN2C471MELZ25 | Nichicon | CAP ALUM 470UF 20% 160V SNAP | 91% | View |
| EEU-FM1E471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 71% | View |
| MAL212026471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V AXIAL | 70% | View |
| B43504B9477M60 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 63% | View |
| 477KBM063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 63V RADIAL | 62% | View |
