CAP ALUM 560UF 20% 220V SNAP

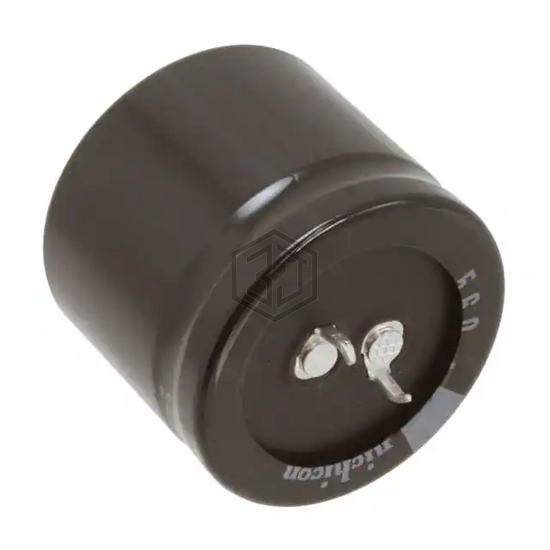

LAQ2P561MELC30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 220V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 220 V, package / case Radial, Can - Snap-In.
In Stock: 2,550
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 220 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.92 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| REA2250561M200B | KYOCERA AVX | CAP ALUM 200V POLAR | 93% | View |
| LSM561M2D---2535S | Surge | CAP ALUM 200V POLAR | 89% | View |
| LSM561M2E---3525S | Surge | CAP ALUM 250V POLAR | 87% | View |
| EKMS181VSN561MP30S | United Chemi-Con | CAP ALUM 560UF 20% 180V SNAP | 86% | View |
| B43254A1567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 160V SNAP | 84% | View |
| 80ZLH560MEFC18X20 | Rubycon | CAP ALUM 560UF 20% 80V RADIAL | 58% | View |
Submit your RFQ for LAQ2P561MELC30 and get a quote within 24 hours.
