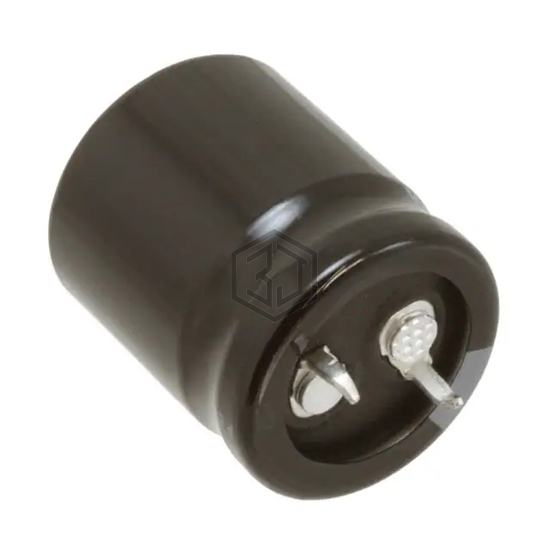

CAP ALUM 56UF 20% 400V SNAP
LAQ2G560MELZ25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 3,068
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPT2W560MHD | Nichicon | CAP ALUM 56UF 20% 450V RADIAL | 94% | View |
| 450KXW56MEFC14.5X35 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 94% | View |
| UPH2W560MHD | Nichicon | CAP ALUM 56UF 20% 450V RADIAL | 92% | View |
| 450HXW56MEFR12.5X30 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 90% | View |
| 450LXW56MEFR10X45 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 90% | View |
| 160TXW56MEFR8X25 | Rubycon | CAP ALUM 56UF 20% 160V RADIAL | 60% | View |
Submit your RFQ for LAQ2G560MELZ25 and get a quote within 24 hours.
