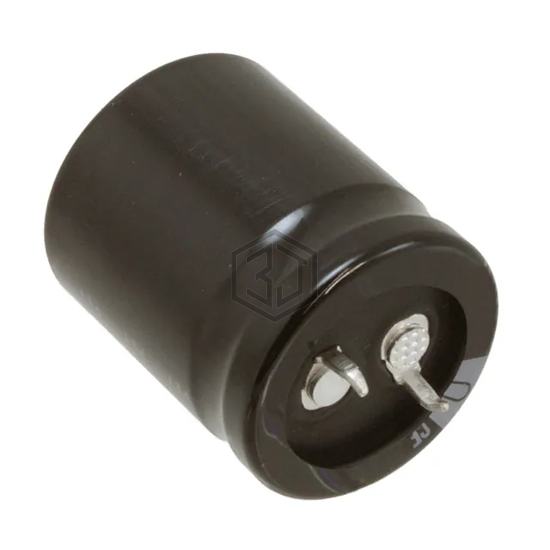

CAP ALUM 120UF 20% 400V SNAP
LAQ2G121MELA30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 5,428
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 760 mA @ 120 Hz |
| Ripple Current @ High Frequency | 874 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43252C9127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 400V SNAP | 93% | View |
| MAL225927121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 450V SNAP | 77% | View |
| MAL225967121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 450V SNAP | 77% | View |
| EKXJ401ELL121ML45S | United Chemi-Con | CAP ALUM 120UF 20% 400V RADIAL | 77% | View |
| 63ZLJ120MT810X12.5 | Rubycon | CAP ALUM 120UF 20% 63V RADIAL | 57% | View |
| B41858C6127M000 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 50V RADIAL | 57% | View |
Submit your RFQ for LAQ2G121MELA30 and get a quote within 24 hours.
