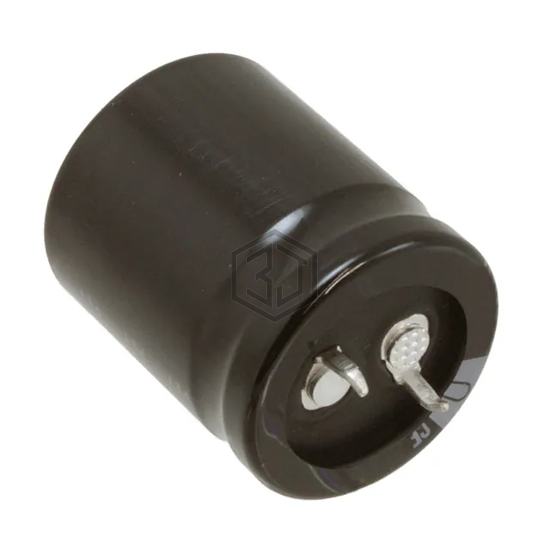

CAP ALUM 470UF 20% 200V SNAP
LAQ2D471MELA30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 5,580
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.74 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 250MXC470MEFCSN25X35 | Rubycon | CAP ALUM 470UF 20% 250V SNAP | 84% | View |
| EEU-FR1V471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V RADIAL | 76% | View |
| 601D477F100GP1 | Vishay Sprague | CAP ALUM 470UF 100V AXIAL | 66% | View |
| EKY-800ELL471ML25S | United Chemi-Con | CAP ALUM 470UF 20% 80V RADIAL | 66% | View |
| B43515A5477M7 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 450V SNAP | 57% | View |
| 860130578008 | Würth Elektronik | CAP ALUM 470UF 20% 35V RADIAL | 54% | View |
