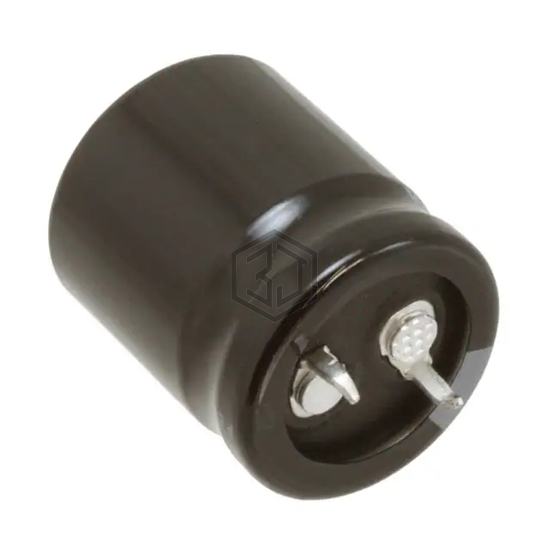

CAP ALUM 220UF 20% 200V SNAP
LAQ2D221MELZ25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 2,309
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 900 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.08 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FM1V221L | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 75% | View |
| 517D227M160FR6AE3 | Vishay Sprague | CAP ALUM 220UF 20% 160V RADIAL | 72% | View |
| 80ZLJ220MG412.5X20 | Rubycon | CAP ALUM 220UF 20% 80V RADIAL | 71% | View |
| EGXE101ELL221ML25S | United Chemi-Con | CAP ALUM 220UF 20% 100V RADIAL | 67% | View |
| LGU2G221MELZ | Nichicon | CAP ALUM 220UF 20% 400V SNAP | 65% | View |
| B43508C5227M87 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 65% | View |
