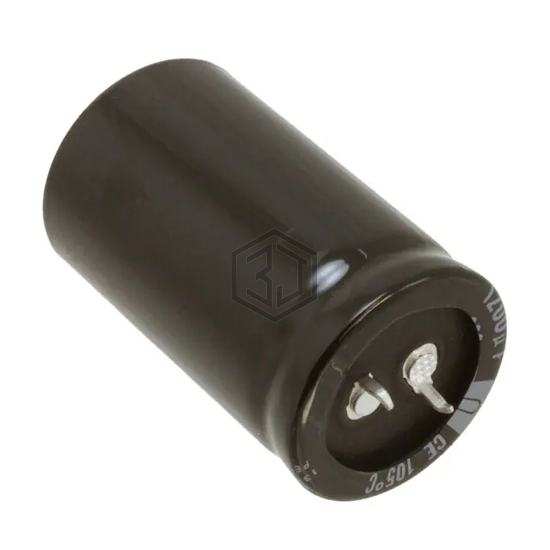

CAP ALUM 1200UF 20% 200V SNAP
LAQ2D122MELB50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.18 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ETXH201VSN122MB35S | United Chemi-Con | CAP ALUM 1200UF 20% 200V SNAP | 95% | View |
| 200VXG1200MEFC30X40 | Rubycon | CAP ALUM 1200UF 20% 200V SNAP | 95% | View |
| MAL215943122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 250V SNAP | 88% | View |
| LGX2E122MELC40 | Nichicon | CAP ALUM 1200UF 20% 250V SNAP | 87% | View |
| 381LQ122M250A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 250V SNAP | 86% | View |
| LGW2E122MELB50 | Nichicon | CAP ALUM 1200UF 20% 250V SNAP | 75% | View |
