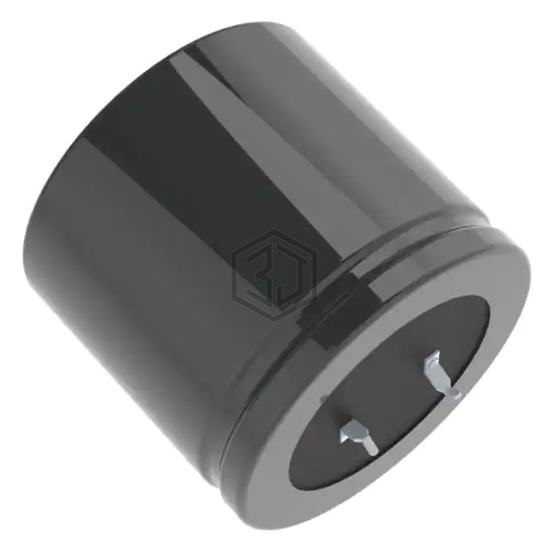

CAP ALUM 180UF 20% 420V SNAP
LAKW6181MELC30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 6,307
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 900 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.035 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LASW6181MELA40 | Nichicon | CAP ALUM 180UF 20% 420V SNAP | 100% | View |
| B43504E187M80 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 420V SNAP | 98% | View |
| LKX2W181MESZ50 | Nichicon | CAP ALUM 180UF 20% 450V SNAP | 93% | View |
| EKMH451VSN181MQ45W | United Chemi-Con | CAP ALUM 180UF 20% 450V SNAP | 93% | View |
| 450MXC180MEFCSN30X30 | Rubycon | CAP ALUM 180UF 20% 450V SNAP | 88% | View |
| B43254C4187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 350V SNAP | 87% | View |
Submit your RFQ for LAKW6181MELC30 and get a quote within 24 hours.
