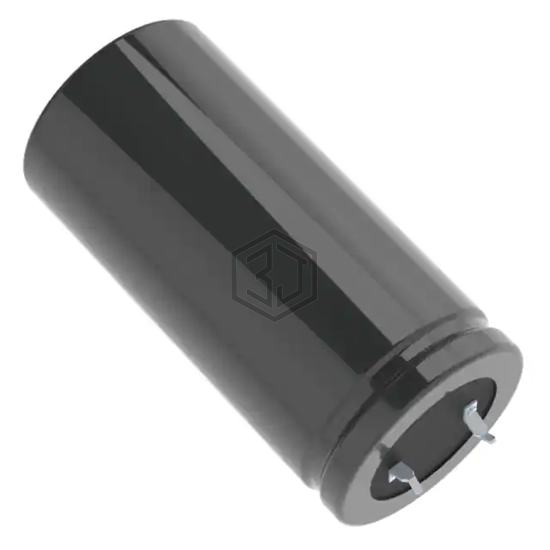

CAP ALUM 180UF 20% 420V SNAP
LAKW6181MELA45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 1,733
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 900 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.035 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860021381024 | Würth Elektronik | CAP ALUM 180UF 20% 400V RADIAL | 91% | View |
| 400QXW180MEFR16X50 | Rubycon | CAP ALUM 180UF 20% 400V RADIAL | 83% | View |
| 450MXH180MEFC30X25 | Rubycon | CAP ALUM 180UF 20% 450V SNAP | 80% | View |
| 420HXW180MEFR18X40 | Rubycon | CAP ALUM 180UF 20% 420V RADIAL | 79% | View |
| UPT2E181MHD6 | Nichicon | CAP ALUM 180UF 20% 250V RADIAL | 76% | View |
| LGJ2D181MELY20 | Nichicon | CAP ALUM 180UF 20% 200V SNAP | 72% | View |
Submit your RFQ for LAKW6181MELA45 and get a quote within 24 hours.
