CAP ALUM 150UF 20% 420V SNAP

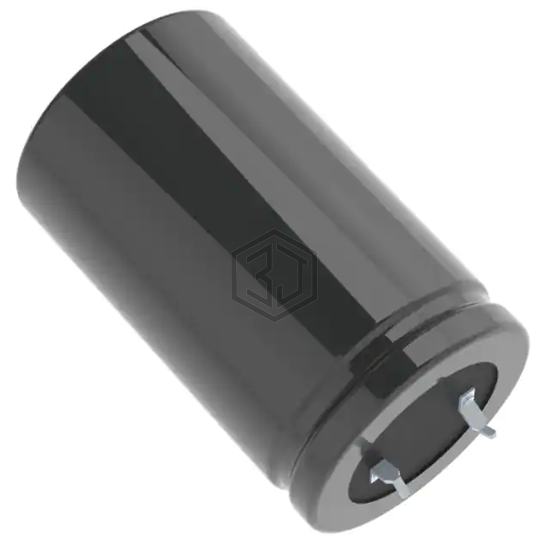

LAKW6151MELA40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 1,576
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 820 mA @ 120 Hz |
| Ripple Current @ High Frequency | 943 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMM401VNN151MQ30S | United Chemi-Con | CAP ALUM 150UF 20% 400V SNAP | 90% | View |
| SLP151M350A5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 350V SNAP | 88% | View |
| PV2W151MNN1840R | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 83% | View |
| 400VXG150MEFCSN22X35 | Rubycon | CAP ALUM 150UF 20% 400V SNAP | 79% | View |
| MAL225966151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 400V SNAP | 79% | View |
| 420HXG150MEFC25X30 | Rubycon | CAP ALUM 150UF 20% 420V SNAP | 66% | View |
Submit your RFQ for LAKW6151MELA40 and get a quote within 24 hours.
