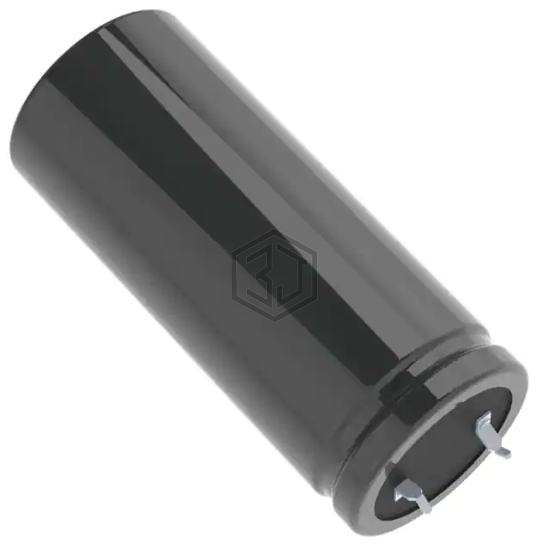

CAP ALUM 180UF 20% 400V SNAP
LAK2G181MELZ50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1,853
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 920 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGR2G181MELB35 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 89% | View |
| MAL209437181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 450V SNAP | 87% | View |
| 381LR181M450K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 450V SNAP | 75% | View |
| LAK2D181MELB20 | Nichicon | CAP ALUM 180UF 20% 200V SNAP | 74% | View |
| EGXF201ELL181MM25S | United Chemi-Con | CAP ALUM 180UF 20% 200V RAD TH | 68% | View |
| UAQ2D181MHD6 | Nichicon | CAP ALUM 180UF 20% 200V RADIAL | 64% | View |
Submit your RFQ for LAK2G181MELZ50 and get a quote within 24 hours.
