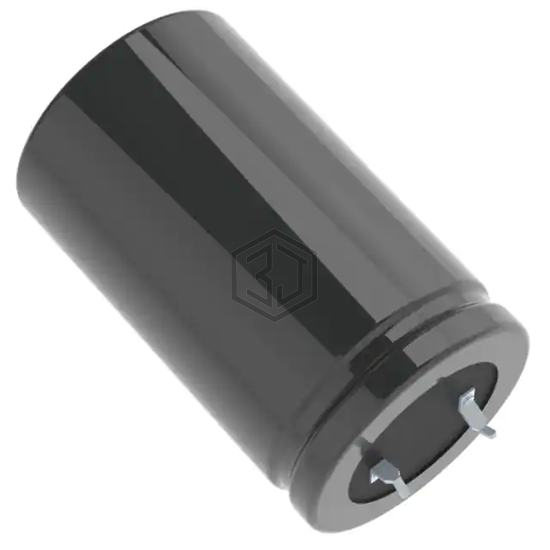

CAP ALUM 180UF 20% 400V SNAP
LAK2G181MELA40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 6,952
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 920 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43642A9187M000 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 400V SNAP | 95% | View |
| EPAG401ELL181MM40S | United Chemi-Con | CAP ALUM 180UF 20% 400V RADIAL | 89% | View |
| B43508B5187M87 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 89% | View |
| 861141483006 | Würth Elektronik | CAP ALUM 180UF 20% 450V SNAP | 81% | View |
| B43254B2187M000 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 200V SNAP | 72% | View |
| EKXJ161ELL181MK30S | United Chemi-Con | CAP ALUM 180UF 20% 160V RADIAL | 58% | View |
Submit your RFQ for LAK2G181MELA40 and get a quote within 24 hours.
