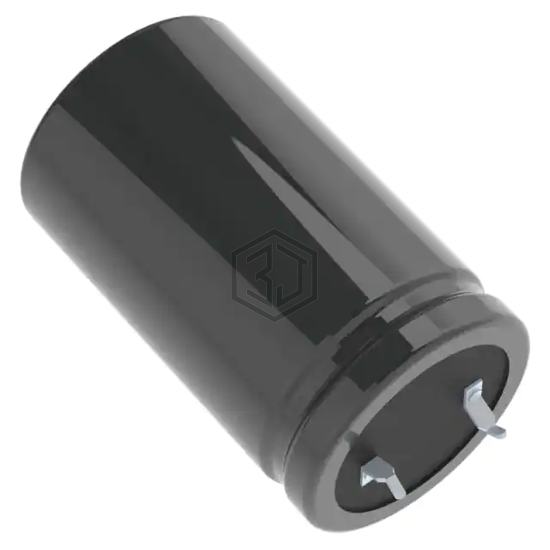

CAP ALUM 390UF 20% 200V SNAP
LAK2D391MELZ35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 4,938
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.44 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2D391MELY | Nichicon | CAP ALUM 390UF 20% 200V SNAP | 90% | View |
| B43508F2397M60 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 250V SNAP | 88% | View |
| 200VXG390MEFC25X25 | Rubycon | CAP ALUM 390UF 20% 200V SNAP | 84% | View |
| 35ZLH390MEFCTA8X20 | Rubycon | CAP ALUM 390UF 20% 35V RADIAL | 69% | View |
| UPA1V391MPD6TD | Nichicon | CAP ALUM 390UF 20% 35V RADIAL | 69% | View |
| 80ZLH390MEFCGC16X20 | Rubycon | CAP ALUM 390UF 20% 80V RADIAL | 64% | View |
Submit your RFQ for LAK2D391MELZ35 and get a quote within 24 hours.
