CAP ALUM 1000UF 20% 200V SNAP

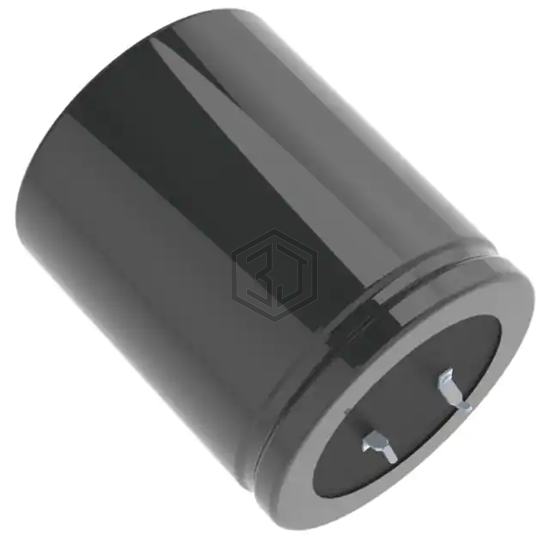

LAK2D102MELC40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,563
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.52 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200MXC1000MEFC30X35 | Rubycon | CAP ALUM 1000UF 20% 200V SNAP | 90% | View |
| EKZE350ELL102MK25S | United Chemi-Con | CAP ALUM 1000UF 20% 35V RADIAL | 71% | View |
| MAL225973102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 250V SNAP | 66% | View |
| LGW2E102MELC35 | Nichicon | CAP ALUM 1000UF 20% 250V SNAP | 66% | View |
| MAL205859102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 100V SNAP | 66% | View |
| EKYB350ELL102MJ30S | United Chemi-Con | CAP ALUM 1000UF 20% 35V RADIAL | 65% | View |
Submit your RFQ for LAK2D102MELC40 and get a quote within 24 hours.
