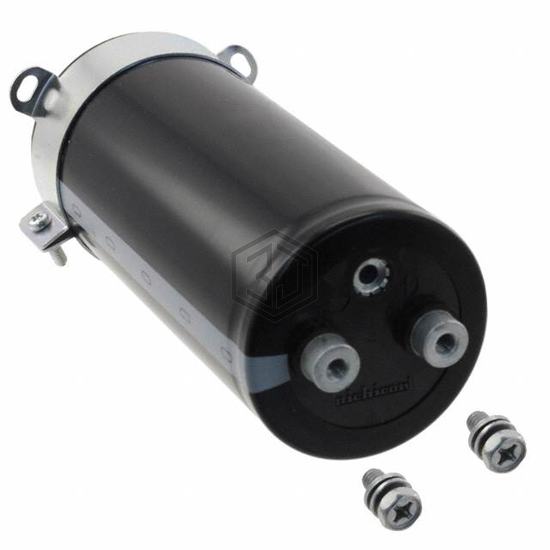

CAP 2600F 20% 2.5V CHASSIS MOUNT
JJL0E268MSEG is a Electric Double Layer Capacitors (EDLC), Supercapacitors manufactured by Nichicon. CAP 2600F 20% 2.5V CHASSIS MOUNT. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 60°C, voltage - rated 2.5 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,737
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2600 F |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 1.3mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 60°C |
| Termination | Screw Terminals |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 6.024" (153.00mm) |
| Operating Temperature | -25°C ~ 60°C |
JJL0E268MSEG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 107DER2R5SLB | Cornell Dubilier / Illinois Capacitor | CAP 100F -20% +50% 2.5V CHAS MT | 100% | View |
| JJC0E477MSECBN | Nichicon | CAP 470F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJL0E857MSEDBN | Nichicon | CAP 850F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJL0E158MSEFBN | Nichicon | CAP 1500F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJL0E657MSECBN | Nichicon | CAP 650F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJL0E208MSEFBN | Nichicon | CAP 2000F 20% 2.5V CHASSIS MOUNT | 100% | View |
Submit your RFQ for JJL0E268MSEG and get a quote within 24 hours.
