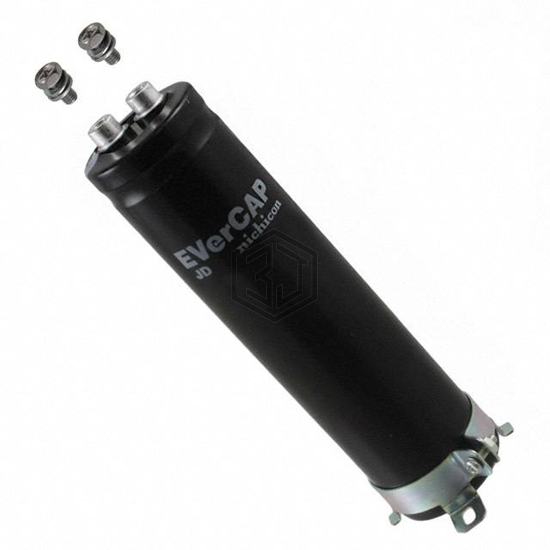

CAP 950F 20% 2.5V CHASSIS MOUNT
JJD0E957MSECBN is a Electric Double Layer Capacitors (EDLC), Supercapacitors manufactured by Nichicon. CAP 950F 20% 2.5V CHASSIS MOUNT. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 60°C, voltage - rated 2.5 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,964
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 950 F |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 60°C |
| Termination | Screw Terminals |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 5.433" (138.00mm) |
| Operating Temperature | -25°C ~ 60°C |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| JJD0E238MSEFBB | Nichicon | CAP 2300F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJL0E657MSECBN | Nichicon | CAP 650F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJL0E158MSEFBB | Nichicon | CAP 1500F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJC0E477MSEC | Nichicon | CAP 470F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJD0E258MSEFBB | Nichicon | CAP 2500F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJL0E208MSEF | Nichicon | CAP 2000F 20% 2.5V CHASSIS MOUNT | 100% | View |
Submit your RFQ for JJD0E957MSECBN and get a quote within 24 hours.
