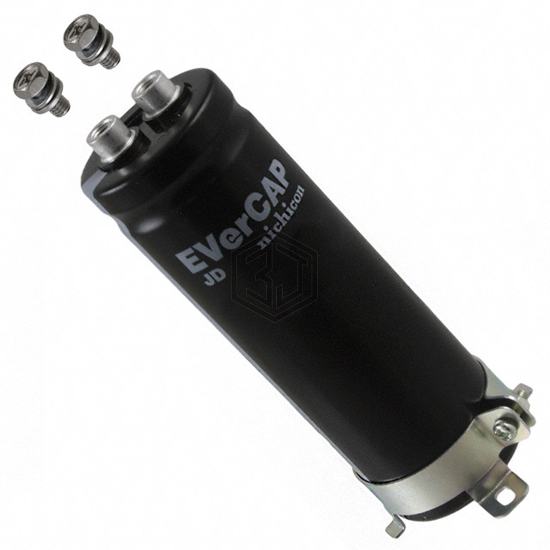

CAP 800F 20% 2.5V CHASSIS MOUNT
JJD0E807MSECBN is a Electric Double Layer Capacitors (EDLC), Supercapacitors manufactured by Nichicon. CAP 800F 20% 2.5V CHASSIS MOUNT. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 60°C, voltage - rated 2.5 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,218
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 800 F |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 13mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 60°C |
| Termination | Screw Terminals |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.252" (108.00mm) |
| Operating Temperature | -25°C ~ 60°C |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| JJL0E268MSEGBB | Nichicon | CAP 2600F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJL0E407MSECBN | Nichicon | CAP 400F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJD0E607MSECBN | Nichicon | CAP 600F 20% 2.5V CHASSIS MOUNT | 100% | View |
| JJL0E557MSECBN | Nichicon | CAP 550F 20% 2.5V CHASSIS MOUNT | 100% | View |
| 107DER2R5SLB | Cornell Dubilier / Illinois Capacitor | CAP 100F -20% +50% 2.5V CHAS MT | 100% | View |
| JJL0E178MSEF | Nichicon | CAP 1700F 20% 2.5V CHASSIS MOUNT | 100% | View |
