CAP ALUM POLY 68UF 20% 50V SMD

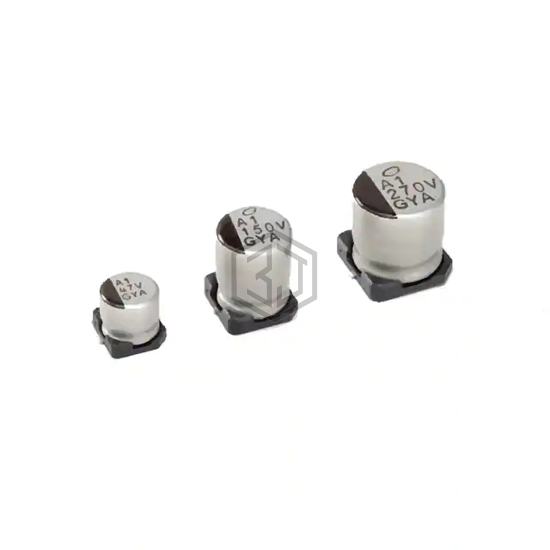

GYA1H680MCQ1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 68UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 8,133
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.25 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| GYA1H680MCW1GS | Nichicon | CAP ALUM POLY HYB 68UF 50V SMD | 100% | View |
| MAL218397805E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 68UF 63V SMD | 87% | View |
| EEH-ZC1J680P | Panasonic Electronic Components | CAP ALUM POLY HYB 68UF 63V SMD | 87% | View |
| GYA1V680MCQ1GS | Nichicon | CAP ALUM POLY 68UF 20% 35V SMD | 82% | View |
| EEH-ZC1V680XV | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 35V SMD | 82% | View |
| EEH-ZE1H680P | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 50V SMD | 76% | View |
