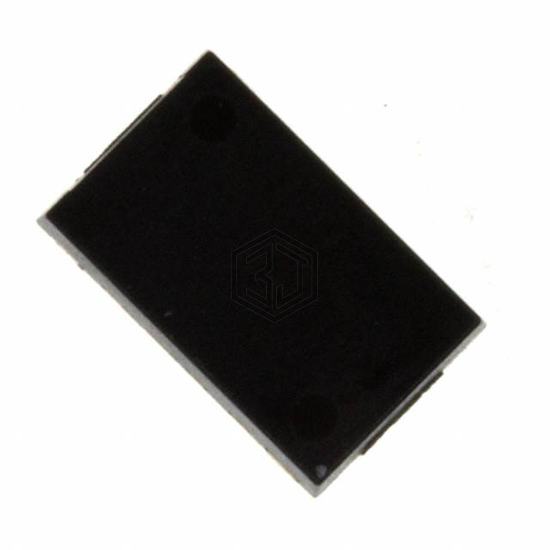

CAP ALUM 220UF 20% 2.5V SMD
F110E227MDL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Nonstandard SMD.
In Stock: 8,704
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 20mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.335" L x 0.209" W (8.50mm x 5.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Surface Mount Land Size | 0.335" L x 0.209" W (8.50mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
F110E227MDL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214097111E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V SMD | 56% | View |
| 25SGV220M8X10.5 | Rubycon | CAP ALUM 220UF 20% 25V SMD | 56% | View |
| 35JKV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 35V SMD | 56% | View |
| AFK227M25F24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 25V SMD | 56% | View |
| EMK1CM221E83D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 56% | View |
| AFK227M35F24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 35V SMD | 56% | View |
