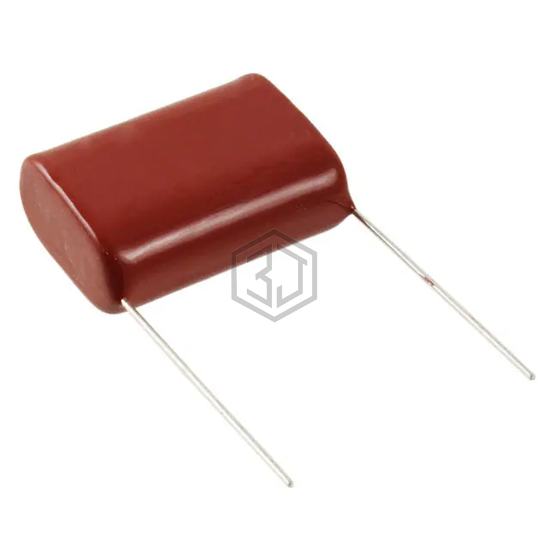

CAP FILM 10UF 250VAC RADIAL
EXH2E106HRPT is a Film Capacitors manufactured by Nichicon. CAP FILM 10UF 250VAC RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage rating - ac 250V, package / case Radial.
In Stock: 6,363
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | -5%, +10% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.417" L x 0.689" W (36.00mm x 17.50mm) |
| Height - Seated (Max) | 1.201" (30.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.280" (32.50mm) |
| Applications | Motor Run |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MABA025100KJS | Nichicon | CAP FILM 10UF 10% 600VDC RAD | 100% | View |
| MKP1848H61012KP5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 10% 1.2KVDC RADIAL | 100% | View |
| MKP1848S61010JY5B | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10UF 5% 1KVDC RADIAL | 100% | View |
| 106MHBS70K2J | Cornell Dubilier / Illinois Capacitor | CAP FILM 10UF 10% 1.275KVDC RAD | 100% | View |
| ECQ-UAAF106SA | Panasonic Electronic Components | CAP FILM 10UF 20% 275VAC RADIAL | 98% | View |
| R71VR510050H6K | KEMET | FILM, RADIAL, PULSE, SINGLE META | 96% | View |
Submit your RFQ for EXH2E106HRPT and get a quote within 24 hours.
