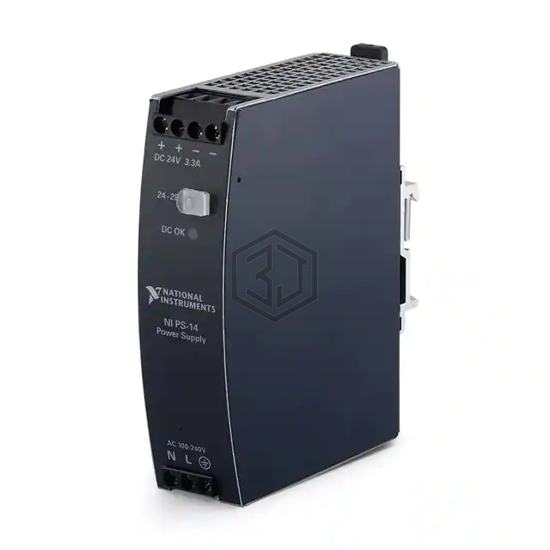

NI PS-14 POWER SUPPLY, 24 VDC, 3
783167-01 is a Industrial, DIN Rail Power Supplies manufactured by NI. NI PS-14 POWER SUPPLY, 24 VDC, 3. Key specifications: operating temperature -25°C ~ 70°C, current - output (max) 2.5A, size / dimension 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm), number of outputs 1.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 100 ~ 240 VAC |
| DC Voltage - Input (Min) | 110V |
| DC Voltage - Input (Max) | 300V |
| Voltage - Output 1 | 24.1V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 60W |
| Voltage - Isolation | - |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 89.9% |
| Operating Temperature | -25°C ~ 70°C |
| Features | Adjustable Output, PFC |
| Size / Dimension | 4.02" L x 1.26" W x 4.88" H (102.0mm x 32.0mm x 124.0mm) |
| Approval Agency | - |
| Standard Number | 60950-1; UL 508 |
Submit your RFQ for 783167-01 and get a quote within 24 hours.
