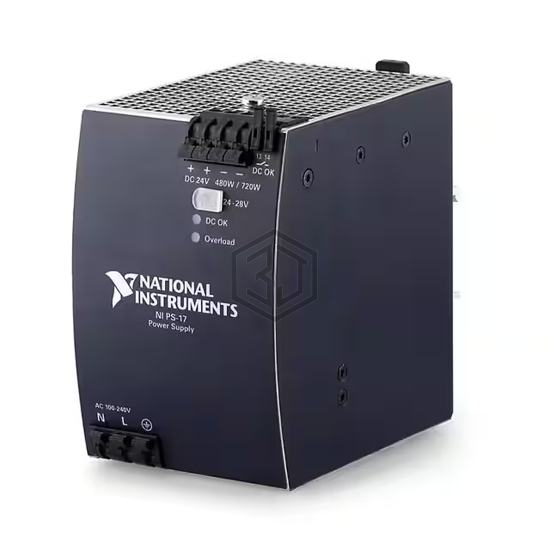

NI PS-17 POWER SUPPLY, 24 VDC, 2
781095-01 is a Industrial, DIN Rail Power Supplies manufactured by NI. NI PS-17 POWER SUPPLY, 24 VDC, 2. Key specifications: operating temperature -25°C ~ 70°C, current - output (max) 20A, size / dimension 4.61" L x 3.23" W x 4.88" H (117.0mm x 82.0mm x 124.0mm), number of outputs 1.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 132 VAC, 180 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24 ~ 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 92.4% |
| Operating Temperature | -25°C ~ 70°C |
| Features | Adjustable Output, PFC |
| Size / Dimension | 4.61" L x 3.23" W x 4.88" H (117.0mm x 82.0mm x 124.0mm) |
| Approval Agency | cURus, UL |
| Standard Number | 60950-1 |
Submit your RFQ for 781095-01 and get a quote within 24 hours.
