2P, STRAIGHT PLUG, 26PIN, IP50

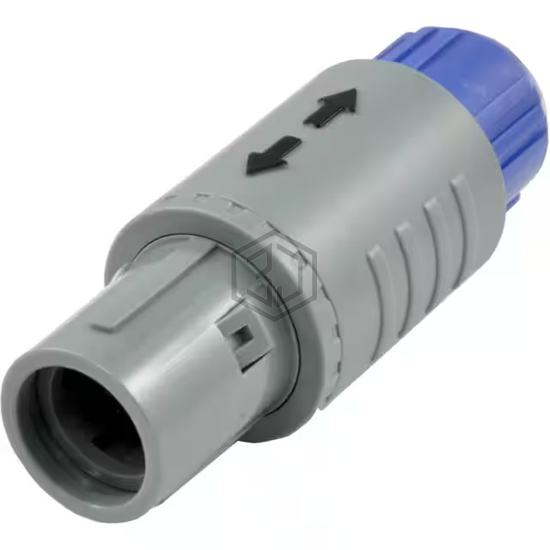

R-MM1G4PA22B260 is a Circular Connectors manufactured by Nextron. 2P, STRAIGHT PLUG, 26PIN, IP50. Key specifications: mounting type Free Hanging (In-Line), operating temperature -50°C ~ 150°C, color Gray, Yellow, current rating (amps) 2A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 26 |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull, Detent Lock |
| Orientation | B |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Gray, Yellow |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
| Cable Opening | 0.209" ~ 0.283" (5.30mm ~ 7.20mm) |
| Operating Temperature | -50°C ~ 150°C |
Submit your RFQ for R-MM1G4PA22B260 and get a quote within 24 hours.
