DOUBLE-POLE DOUBLE-THROW ANALOG

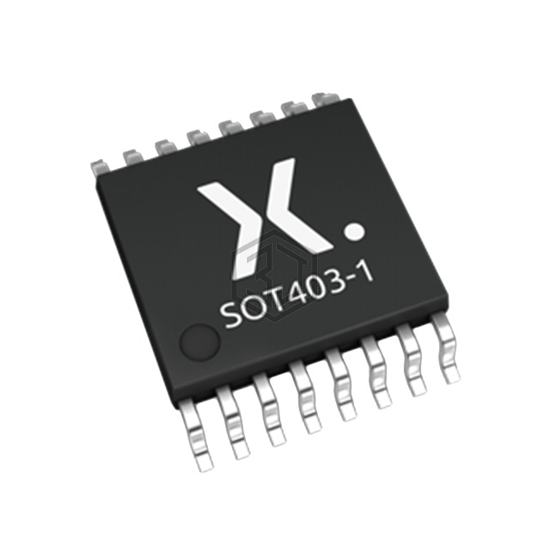

XS3A2467PWJ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. DOUBLE-POLE DOUBLE-THROW ANALOG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-TSSOP (0.173", 4.40mm Width), number of circuits 2.
In Stock: 2,851
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 900mOhm |
| Channel-to-Channel Matching (ΔRon) | 130mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | 1.4V ~ 4.3V |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| -3db Bandwidth | 40MHz |
| Charge Injection | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| XS3A1T5157GSH | Nexperia USA Inc. | XS3A1T5157GS/SOT1202/X2SON6 | 94% | View |
| XS3A1T3157GMX | Nexperia USA Inc. | XS3A1T3157GM/SOT886/XSON6 | 94% | View |
| NX3L2467PW,118 | NXP USA Inc. | IC ANALOG SWITCH DPDT 16TSSOP | 88% | View |
| NX3L1T53GM,125 | NXP USA Inc. | IC ANALOG SWITCH SPDT 8XQFN | 82% | View |
| NX3L1T53GT,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT XSON8U | 82% | View |
| NX3L1T5157GMAZ | NXP USA Inc. | IC ANALOG SWITCH SPDT XSON6 | 82% | View |
Submit your RFQ for XS3A2467PWJ and get a quote within 24 hours.
