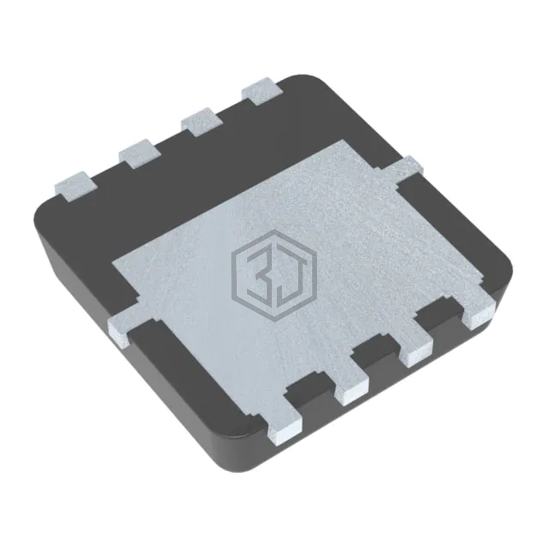

PXP013-30QL/SOT8002/MLPAK33
PXP013-30QLJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PXP013-30QL/SOT8002/MLPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 9,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 8.6A (Ta), 42.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 13.3mOhm @ 8.6A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 50.1 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1650 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.7W (Ta), 40W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | MLPAK33 |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for PXP013-30QLJ and get a quote within 24 hours.
