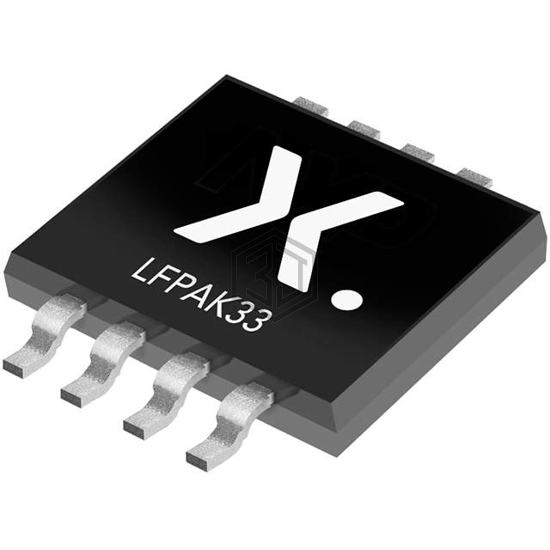

MOSFET N-CH 40V 85A LFPAK33
PSMN5R0-40MLHX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 40V 85A LFPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1210, 8-LFPAK33 (5-Lead).
In Stock: 1,502
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 85A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.15V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2649 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 83W (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK33 |
| Package / Case | SOT-1210, 8-LFPAK33 (5-Lead) |
Submit your RFQ for PSMN5R0-40MLHX and get a quote within 24 hours.
