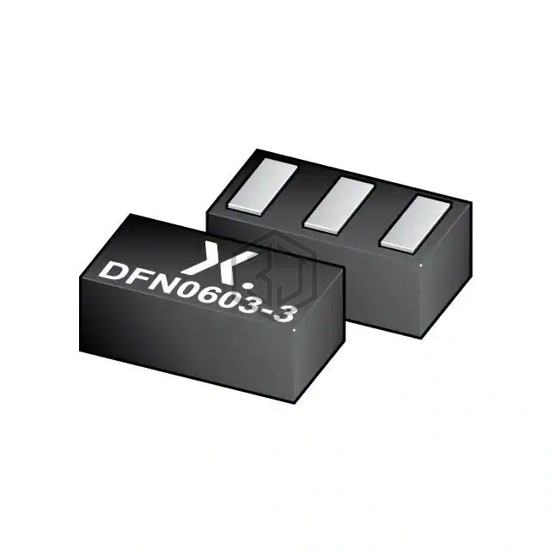

PMX400UP/SOT8013/DFN0603-3
PMX400UPZ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PMX400UP/SOT8013/DFN0603-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0201 (0603 Metric).
In Stock: 13,990
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 900mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 500mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 2.4 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 146 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta), 4.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN0603-3 (SOT8013) |
| Package / Case | 0201 (0603 Metric) |
Submit your RFQ for PMX400UPZ and get a quote within 24 hours.
