P-CHANNEL TRENCH MOSFET

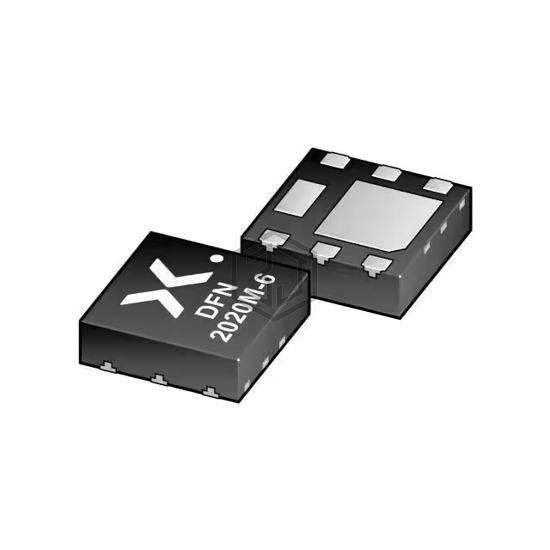

PMPB17EPX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. P-CHANNEL TRENCH MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.
In Stock: 5,965
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 7.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 21mOhm @ 5.8A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 47 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1570 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.9W (Ta), 13W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN2020M-6 |
| Package / Case | 6-UDFN Exposed Pad |
Submit your RFQ for PMPB17EPX and get a quote within 24 hours.
