MOSFET P-CH 20V 5.2A 6TSOP

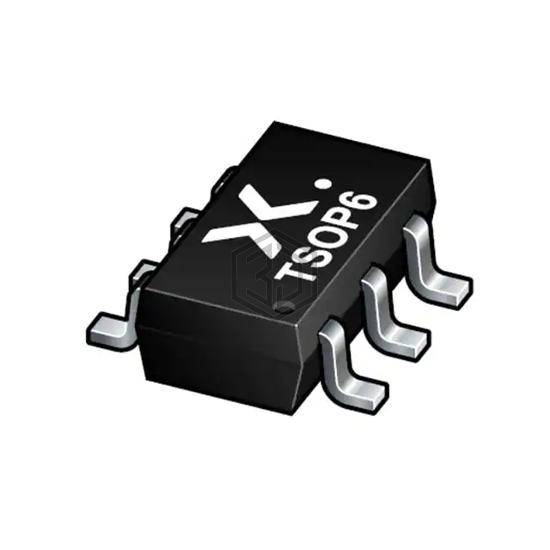

PMN30XPAX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET P-CH 20V 5.2A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SC-74, SOT-457.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 5.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 8V |
| Rds On (Max) @ Id, Vgs | 33mOhm @ 5.2A, 8V |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 16 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1039 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 660mW (Ta), 7.5W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-TSOP |
| Package / Case | SC-74, SOT-457 |
Submit your RFQ for PMN30XPAX and get a quote within 24 hours.
