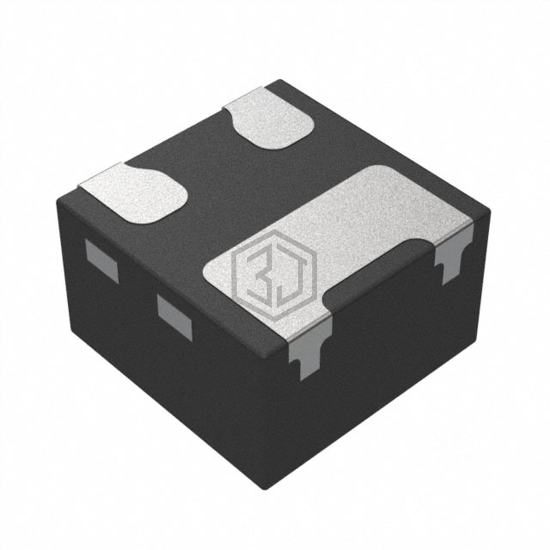

MOSFET P-CH 20V 800MA DFN0606-3
PMH550UPEH is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET P-CH 20V 800MA DFN0606-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.
In Stock: 516
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 800mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 640mOhm @ 600mA, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.9 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 54.8 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 360mW (Ta), 2.23W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN0606-3 (SOT8001) |
| Package / Case | 3-XFDFN |
Submit your RFQ for PMH550UPEH and get a quote within 24 hours.
