MOSFET N-CH 12V 4.7A 4WLCSP

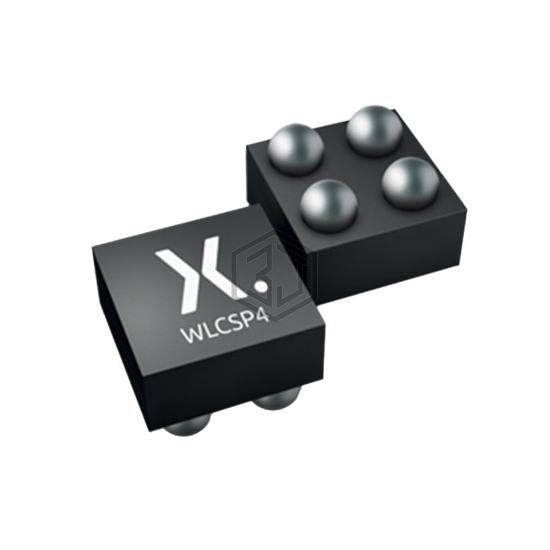

PMCM4401VNEAZ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 12V 4.7A 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-XFBGA, WLCSP.
In Stock: 5,172
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 4.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 42mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 335 pF @ 6 V |
| FET Feature | - |
| Power Dissipation (Max) | 400mW (Ta), 12.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-WLCSP (0.78x0.78) |
| Package / Case | 4-XFBGA, WLCSP |
Submit your RFQ for PMCM4401VNEAZ and get a quote within 24 hours.
