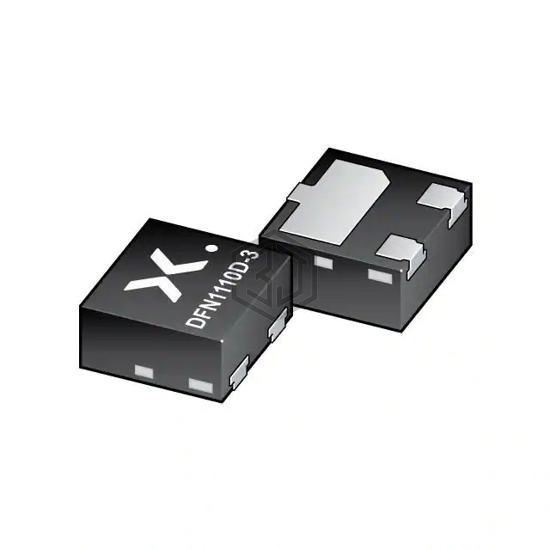

PDTC143EQB/SOT8015/DFN1110D-3
PDTC143EQBZ is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Nexperia USA Inc.. PDTC143EQB/SOT8015/DFN1110D-3. Key specifications: mounting type Surface Mount, Wettable Flank, package / case 3-XDFN Exposed Pad, current - collector (ic) (max) 100 mA, power - max 340 mW.
In Stock: 5,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Transistor Type | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistor - Base (R1) | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 4.7 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA |
| Frequency - Transition | 180 MHz |
| Power - Max | 340 mW |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 3-XDFN Exposed Pad |
| Supplier Device Package | DFN1110D-3 |
Submit your RFQ for PDTC143EQBZ and get a quote within 24 hours.
