TRANS PREBIAS 1NPN 1PNP 6TSOP

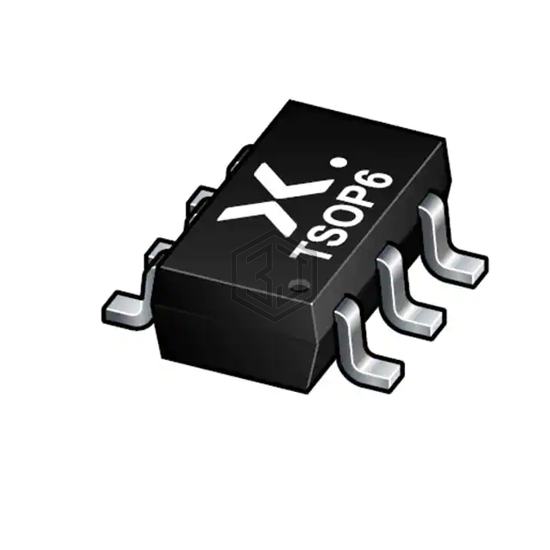

PBLS2004D,115 is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by Nexperia USA Inc.. TRANS PREBIAS 1NPN 1PNP 6TSOP. Key specifications: mounting type Surface Mount, package / case SC-74, SOT-457, current - collector (ic) (max) 100mA, 1A, power - max 600mW.
In Stock: 1,735
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP |
| Current - Collector (Ic) (Max) | 100mA, 1A |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 20V |
| Resistor - Base (R1) | 22kOhms |
| Resistor - Emitter Base (R2) | 22kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 5V / 220 @ 500mA, 2V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA / 280mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 1µA, 100nA |
| Frequency - Transition | 185MHz |
| Power - Max | 600mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | 6-TSOP |
Submit your RFQ for PBLS2004D,115 and get a quote within 24 hours.
