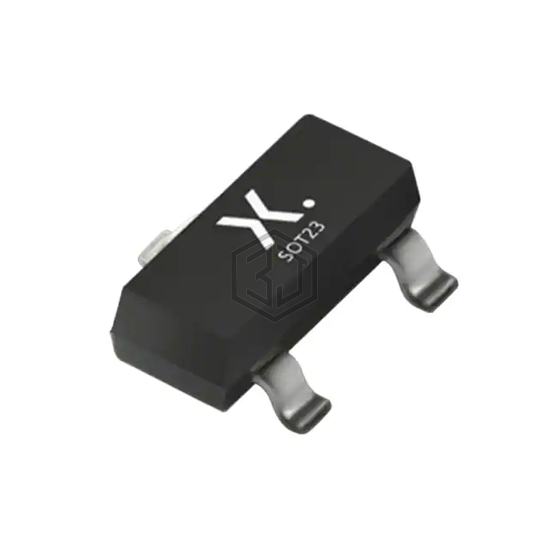

NXV40UN/SOT23/TO-236AB
NXV40UNR is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. NXV40UN/SOT23/TO-236AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 3,177
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 2.5A, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 347 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 340mW (Ta), 2.1W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-236AB |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
Submit your RFQ for NXV40UNR and get a quote within 24 hours.
