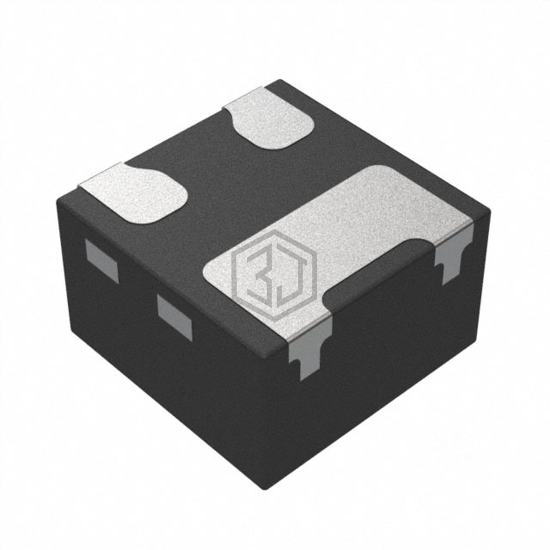

MOSFET N-CH 60V 350MA DFN0606-3
NX7002BKHH is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 60V 350MA DFN0606-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.
In Stock: 10,312
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 350mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.8Ohm @ 200mA, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 22.2 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 380mW (Ta), 2.8W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN0606-3 |
| Package / Case | 3-XFDFN |
Submit your RFQ for NX7002BKHH and get a quote within 24 hours.
