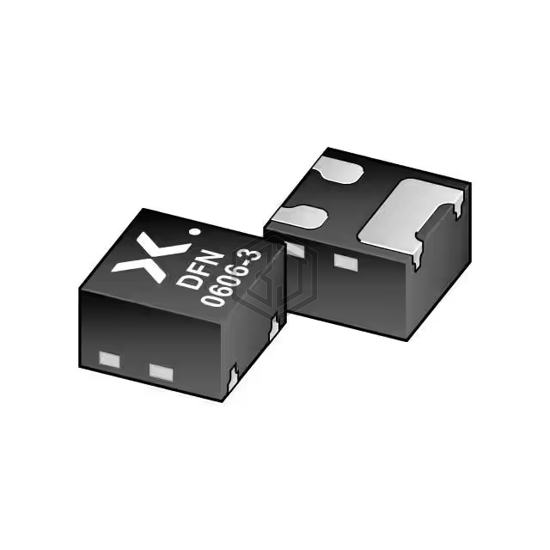

NX138AKH/SOT8001/DFN0606-3
NX138AKHH is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. NX138AKH/SOT8001/DFN0606-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.
In Stock: 8,400
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 260mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.2Ohm @ 190mA, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.6 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 15 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 360mW (Ta), 2.3W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN0606-3 |
| Package / Case | 3-XFDFN |
Submit your RFQ for NX138AKHH and get a quote within 24 hours.
