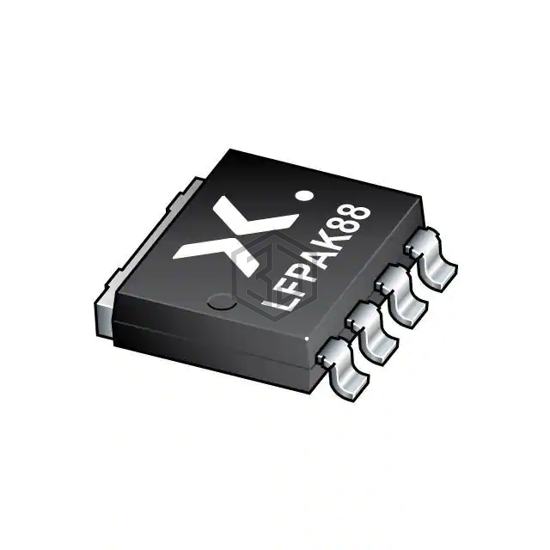

BUK7S2R0-40H/SOT1235/LFPAK88
BUK7S2R0-40HJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. BUK7S2R0-40H/SOT1235/LFPAK88. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1235.
In Stock: 3,980
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 190A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 3.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V |
| Vgs (Max) | +20V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 5075 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 183W (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK88 (SOT1235) |
| Package / Case | SOT-1235 |
Submit your RFQ for BUK7S2R0-40HJ and get a quote within 24 hours.
