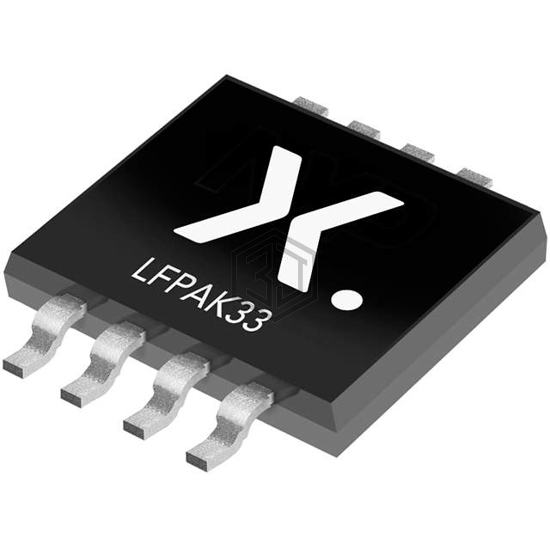

MOSFET N-CH 40V 40A LFPAK33
BUK7M9R5-40HX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 40V 40A LFPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1210, 8-LFPAK33 (5-Lead).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 40A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 3.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1166 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 55W (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK33 |
| Package / Case | SOT-1210, 8-LFPAK33 (5-Lead) |
Submit your RFQ for BUK7M9R5-40HX and get a quote within 24 hours.
