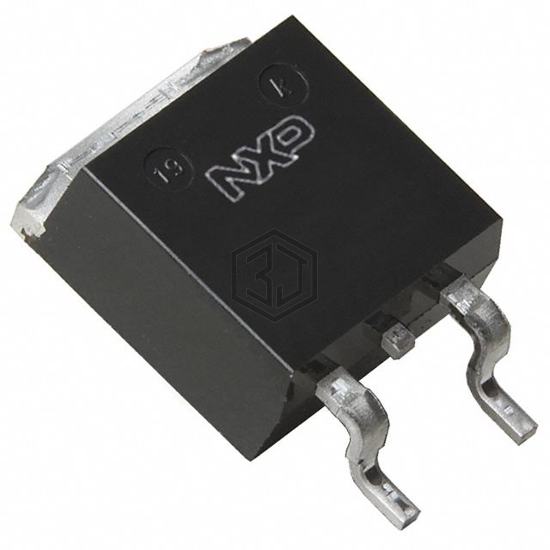

MOSFET N-CH 55V 35A D2PAK
BUK7635-55A,118 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 55V 35A D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.
In Stock: 1,645
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 872 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 85W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Submit your RFQ for BUK7635-55A,118 and get a quote within 24 hours.
