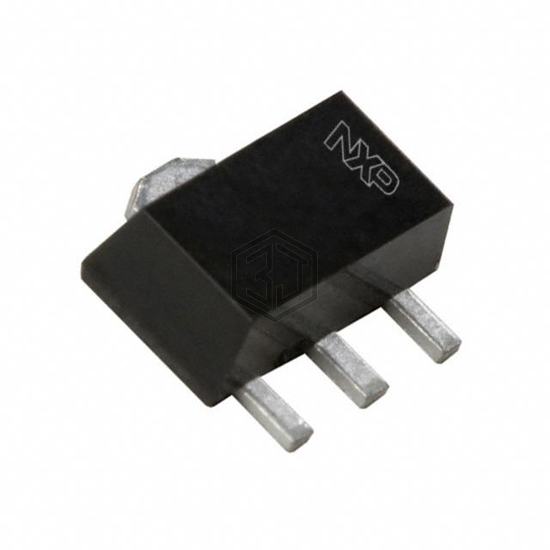

MOSFET N-CH 200V 400MA SOT89
BSS87,115 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 200V 400MA SOT89. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-243AA.
In Stock: 138,349
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 400mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 400mA, 10V |
| Vgs(th) (Max) @ Id | 2.8V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 120 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 580mW (Ta), 12.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-89 |
| Package / Case | TO-243AA |
Submit your RFQ for BSS87,115 and get a quote within 24 hours.
