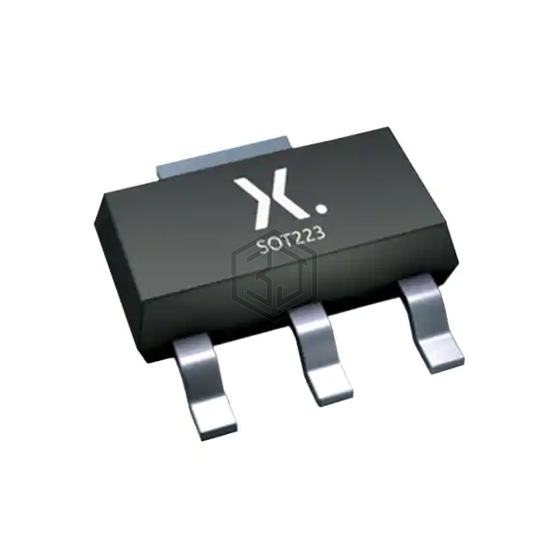

MOSFET N-CH 240V 375MA SOT223
BSP89,115 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 240V 375MA SOT223. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-261-4, TO-261AA.
In Stock: 5,032
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 240 V |
| Current - Continuous Drain (Id) @ 25°C | 375mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 340mA, 10V |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 120 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223 |
| Package / Case | TO-261-4, TO-261AA |
Submit your RFQ for BSP89,115 and get a quote within 24 hours.
