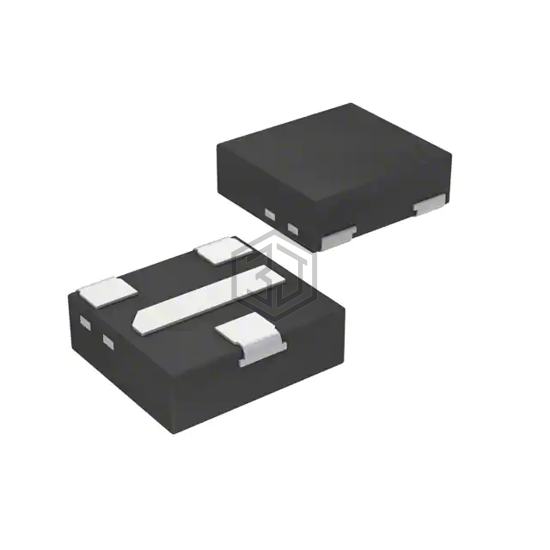

BAV99QAZ
DIODE HS SW 90V 170MA SOT1215
BAV99QAZ is a Diodes - Rectifiers - Arrays manufactured by Nexperia USA Inc.. DIODE HS SW 90V 170MA SOT1215. Key specifications: mounting type Surface Mount, package / case 3-XDFN Exposed Pad.
In Stock: 918
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Configuration | 1 Pair Series Connection |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 90 V |
| Current - Average Rectified (Io) (per Diode) | 170mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | 3-XDFN Exposed Pad |
| Supplier Device Package | DFN1010D-3 |
Frequently Asked Questions
BAV99QAZ is a Diodes - Rectifiers - Arrays manufactured by Nexperia USA Inc.. DIODE HS SW 90V 170MA SOT1215
The mounting type of BAV99QAZ is Surface Mount.
The package type of BAV99QAZ is 3-XDFN Exposed Pad.
