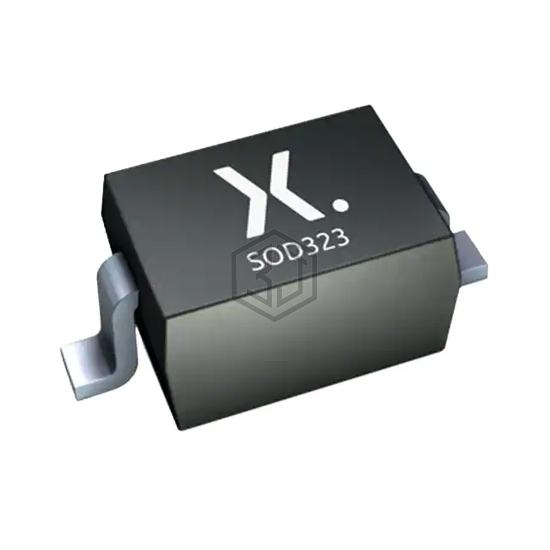

BAT760F
DIODE SCHOTTKY 20V 1A SOD323
BAT760F is a Diodes - Rectifiers - Single manufactured by Nexperia USA Inc.. DIODE SCHOTTKY 20V 1A SOD323. Key specifications: mounting type Surface Mount, package / case SC-76, SOD-323.
In Stock: 9,520
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 1A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 15 V |
| Capacitance @ Vr, F | 25pF @ 5V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | 125°C (Max) |
Frequently Asked Questions
BAT760F is a Diodes - Rectifiers - Single manufactured by Nexperia USA Inc.. DIODE SCHOTTKY 20V 1A SOD323
The mounting type of BAT760F is Surface Mount.
The package type of BAT760F is SC-76, SOD-323.
