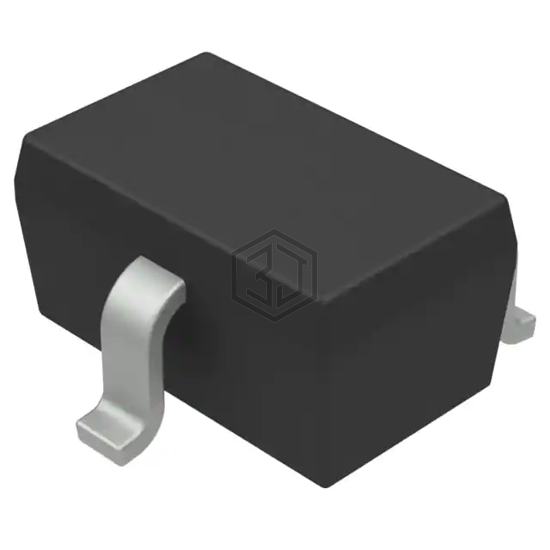

BAT54W,135
DIODE SCHOTTKY 30V 200MA SC70
BAT54W,135 is a Diodes - Rectifiers - Single manufactured by Nexperia USA Inc.. DIODE SCHOTTKY 30V 200MA SC70. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323.
In Stock: 3,404
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
| Operating Temperature - Junction | 150°C (Max) |
Frequently Asked Questions
BAT54W,135 is a Diodes - Rectifiers - Single manufactured by Nexperia USA Inc.. DIODE SCHOTTKY 30V 200MA SC70
The mounting type of BAT54W,135 is Surface Mount.
The package type of BAT54W,135 is SC-70, SOT-323.
