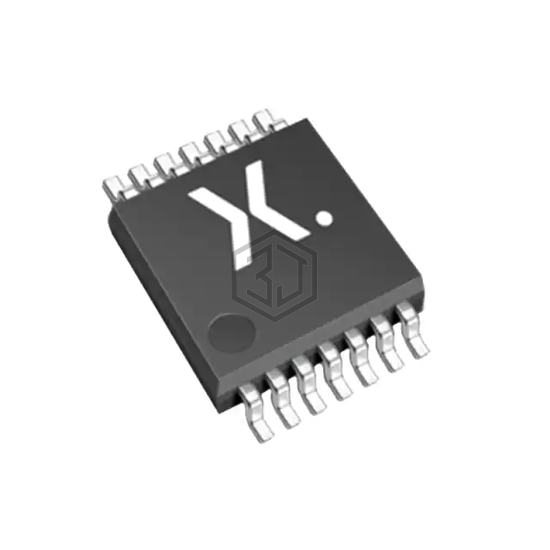

IC SWITCH QUAD BILATERAL 14TSSOP
74LVC4066PW-Q100J is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. IC SWITCH QUAD BILATERAL 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 14-TSSOP (0.173", 4.40mm Width), number of circuits 4.
In Stock: 2,089
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 3.9ns, 5ns |
| -3db Bandwidth | 500MHz |
| Charge Injection | 7.5pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF |
| Current - Leakage (IS(off)) (Max) | 5µA |
| Crosstalk | -56dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC4066BQ,115 | Nexperia USA Inc. | IC SWITCH QUAD SPST 14DHVQFN | 100% | View |
| 74LVC4066BQ-Q100X | Nexperia USA Inc. | IC SWITCH QUAD BILATERL 14DHVQFN | 100% | View |
| 74LVC2G66DP-Q100H | Nexperia USA Inc. | IC BILATERAL SWITCH 8TSSOP | 90% | View |
| 74LVC2G66GM | Nexperia USA Inc. | SPST, 2 FUNC, 1 CHANNEL, CMOS, P | 77% | View |
| 74LVC1G53GT,115 | Nexperia USA Inc. | IC MUX/DEMUX 2X1 8XSON | 70% | View |
| 74LVC2G53DP,125 | Nexperia USA Inc. | IC MUX/DEMUX 2X1 8TSSOP | 70% | View |
Submit your RFQ for 74LVC4066PW-Q100J and get a quote within 24 hours.
