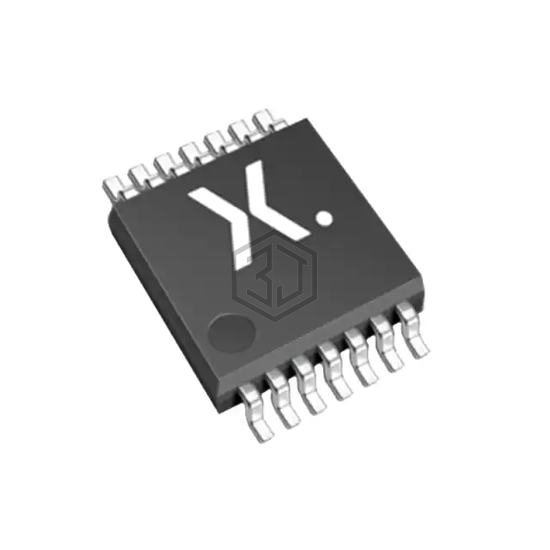

IC GATE NAND 1CH 8-INP 14TSSOP
74LVC30APWJ is a Logic - Gates and Inverters manufactured by Nexperia USA Inc.. IC GATE NAND 1CH 8-INP 14TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.2V ~ 3.6V, package / case 14-TSSOP (0.173", 4.40mm Width).
In Stock: 5,846
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 8 |
| Features | - |
| Voltage - Supply | 1.2V ~ 3.6V |
| Current - Quiescent (Max) | 40 µA |
| Current - Output High, Low | 24mA, 24mA |
| Logic Level - Low | 0.12V ~ 0.8V |
| Logic Level - High | 1.08V ~ 2V |
| Max Propagation Delay @ V, Max CL | 6.3ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
74LVC30APWJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC132ABQ,115 | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14DHVQFN | 82% | View |
| 74LVC00APW,118 | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14TSSOP | 77% | View |
| 74LVC00APW/AUJ | NXP USA Inc. | IC GATE NAND 4CH 2-INP 14TSSOP | 66% | View |
| MC74AC00DTR2G | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 52% | View |
| SN74LVC00ADT | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 51% | View |
| SN74LVC00AQPWREP | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 51% | View |
Submit your RFQ for 74LVC30APWJ and get a quote within 24 hours.
