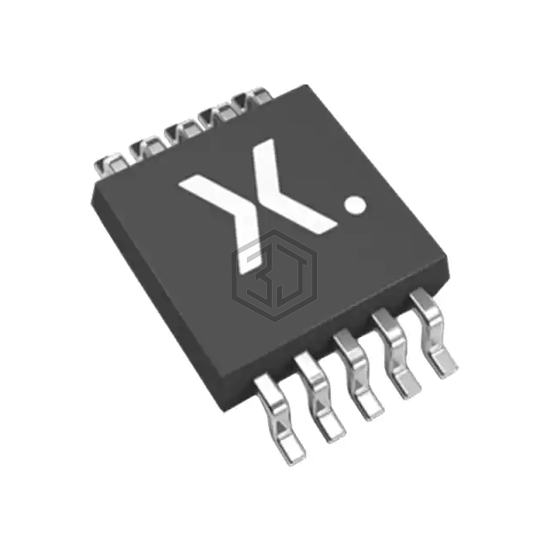

IC SWITCH SPDT DUAL 10TSSOP
74LVC2G3157DPJ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. IC SWITCH SPDT DUAL 10TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 2,730
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 5.7ns, 3.8ns |
| -3db Bandwidth | - |
| Charge Injection | 7.5pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current - Leakage (IS(off)) (Max) | 5µA |
| Crosstalk | -54dB @ 10MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC2G3157GMX | NXP USA Inc. | 74LVC2G3157 - DUAL SINGLE-POLE D | 100% | View |
| SN74LVC2G66QDCURQ1 | Texas Instruments | IC SWITCH SPST DUAL 8VSSOP | 80% | View |
| SN74LVC1G3157DTBR | Texas Instruments | IC SWITCH SPDT SINGLE 6X2SON | 70% | View |
| 1P1G3157QDBVRQ1 | Texas Instruments | IC SWITCH SPDT SOT23-6 | 70% | View |
| 1P1G3157QDCKRQ1 | Texas Instruments | IC SWITCH SPDT SC70-6 | 70% | View |
| SN74LVC1G3157DCKR | Texas Instruments | IC SWITCH SPDT SC70-6 | 70% | View |
Submit your RFQ for 74LVC2G3157DPJ and get a quote within 24 hours.
